Introduction

In modern electronics, providing a stable and reliable voltage supply is critical for the proper functioning of devices. Fluctuations in voltage can damage sensitive components, cause erratic behavior, or reduce the lifespan of circuits. One of the most reliable solutions to this challenge is the linear voltage regulator, a fundamental component in electronic design.

What is a Linear Voltage Regulator?

A linear voltage regulator is an electronic device that maintains a constant output voltage regardless of changes in input voltage or load conditions. It operates by dissipating excess voltage as heat to regulate the output, ensuring that connected components receive stable power. Popular examples include the 7805 (5V output), 7812 (12V output), and adjustable regulators like the LM317.

Linear regulators are commonly used in applications ranging from simple DIY electronics to industrial control systems, embedded circuits, and communication devices. Their simplicity, ease of use, and reliability make them a staple in both hobbyist and professional electronic projects.

How Linear Voltage Regulators Work

Linear regulators function by continuously adjusting a series pass transistor to maintain a steady output voltage. The internal reference voltage is compared to the output voltage using an error amplifier. Any deviation triggers the regulator to adjust the transistor, correcting the voltage back to the desired level.

While linear regulators are easy to implement, they are less energy-efficient than switching regulators because the excess voltage is dissipated as heat. This heat generation requires proper heat sinks and thermal management, especially when supplying high currents or large input-output voltage differences.

Key Components in a Linear Voltage Regulator Circuit

A typical linear voltage regulator circuit includes:

Input Capacitor: Stabilizes input voltage and filters noise.
Regulator IC: The main component that maintains output voltage.
Output Capacitor: Reduces voltage spikes, improves transient response, and ensures stability.
Heat Sink: Prevents thermal overload for high-current applications.

Proper selection and placement of these components are essential for ensuring regulator efficiency, reliability, and long-term performance.

Advantages of Linear Voltage Regulators

Linear voltage regulators provide several benefits for electronic circuits:

Simplicity: Requires minimal external components, making circuit design straightforward.
Low Noise: Produces less electrical noise than switching regulators, ideal for sensitive analog circuits and audio applications.
Fast Response: Quickly reacts to changes in load, maintaining stable output voltage.
Cost-Effective: Readily available and inexpensive components suitable for small-scale and high-volume projects.

Applications of Linear Voltage Regulators

Linear regulators are used in a wide range of electronics and electrical applications:

Embedded Systems: Power microcontrollers, sensors, and communication modules.
Consumer Electronics: Supply stable voltage to devices such as LED lights, audio amplifiers, and chargers.
Industrial Equipment: Ensure reliable operation of measurement instruments, control systems, and relays.
DIY Projects: Provide beginners with a simple and safe power regulation solution.

Their low noise characteristics make them particularly suitable for applications requiring precise analog signal processing or sensitive data acquisition.

Choosing the Right Linear Voltage Regulator

Selecting a linear voltage regulator depends on several factors:

Output Voltage Requirement: Fixed regulators (e.g., 7805) or adjustable (e.g., LM317).
Current Capacity: Maximum load current the regulator can safely supply.
Input Voltage Range: Ensure the input voltage is higher than the desired output.
Thermal Considerations: Heat dissipation must be managed with proper heatsinks.

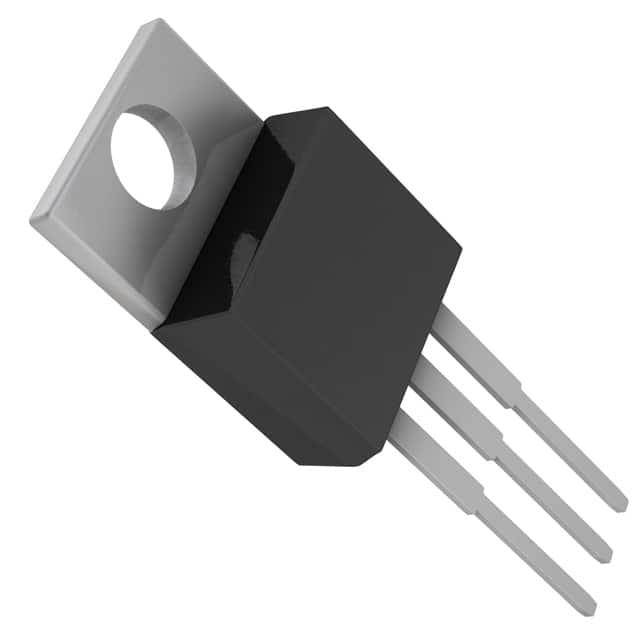

Package Type: TO-220, SOT-223, or surface-mount options depending on the application.

Consulting datasheets and manufacturer specifications, such as those provided by EnrgtechGlobal, ensures the chosen regulator meets performance and safety standards.

Common Challenges and Solutions

While linear voltage regulators are reliable, designers should be aware of potential challenges:

Heat Generation: High input-output voltage differences produce excess heat. Solution: Use heat sinks or reduce input voltage.
Load Regulation: Large variations in load can cause minor voltage fluctuations. Solution: Add output capacitors and ensure proper circuit design.
Input Voltage Noise: Unstable input can affect output. Solution: Include input capacitors and filtering components.

By addressing these issues, linear voltage regulators can deliver consistent performance in demanding environments.

Linear Voltage Regulators vs. Switching Regulators

Although linear regulators are widely used, switching regulators offer higher efficiency by converting excess voltage instead of dissipating it as heat. However, switching regulators introduce noise and require more complex designs. For small-scale or sensitive electronic applications, linear voltage regulators remain the preferred choice due to simplicity and low electrical noise.

Conclusion

A linear voltage regulator is a vital component in ensuring stable and reliable power for electronic circuits. From hobbyist projects to industrial applications, these regulators provide simplicity, low noise, and dependable performance. Proper selection, component integration, and thermal management can optimize performance, making linear voltage regulators a cornerstone of electronics design.

For engineers and electronics enthusiasts, sourcing high-quality regulators from trusted suppliers like EnrgtechGlobal ensures reliability, availability, and consistent performance across all projects.
